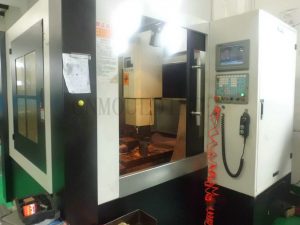

| Mold making/manufacturing | China CNC milling machine | Unit | XK1060G | XK1680G |
| Spindle | Rotating speed of the spindle | rpm | 60-6000 | 60-6000 |
| Number of gears of the spindle | | Stepless | Stepless |
| Conical holes of the spindle | | ISO40 | ISO50 |
| Power of spindle | kw | 7.5/11 | 15/18.5 |
| Distance between the spindle center and column surface | mm | 650 | 850 |
| Distance between the spindle nose and worktable | mm | 120-720 | 150-850 |
| Worktable | Area of worktable | mm | 1200*550 | 1800*800 |
| The maximum carrying capacity of the worktable | kg | 1000 | 1500 |
| T-slot width/ number | mm | 5-18 | 5-22 |
| The precision of the machine tool | Precision of positioning | mm | 0.015 | 0.015 |
| The precision of repeated positioning | mm | 0.005 | 0.005 |
| The journey of three axes | Journey of axis X | mm | 1000 | 1600 |
| The journey of axis Y | mm | 600 | 800 |
| The journey of axis Z | mm | 600 | 700 |
| Feed speed | High feed speed | mm/min | 10000 | 10000 |
| Cutting feed speed | mm/min | 1-5000 | 1-5000 |
| Control | Model of the tool shank | | BT40 | BT50 |
| Number of control axes/ number of coupling axes | | 3-3 | 3-3 |
| Control equivalent | mm | 0.001 | 0.001 |
| External dimensions and weight of the machine tool | Height of machine tool/mold | mm | 2800 | 2950 |
| Floor area | mm | 3200*2250 | 4400*3300 |
| Transport area | mm | 3400*2300 | 2300*3500 |
| Net weight of machine tool | kg | 6200 | 17000 |
| Standard configuration | Tool magazine, Full-type anti-spray jacket, Work indicator light, Cooling system, Cutting water tank (including scrap collecting dolly), Full-automatic lubricating system, Quartz work light, Blowing device of spindle, Blowing device of work-pieces, Horizontal filling block, and bolt, Kit (including tools), Operation manual, Transformer, Air-pressure type tool locking device |
| Purchased configuration | Mitsubishi E60, M64S system, FANAC 0i mate mc system, Flat cutting pliers, Clamping |
